Eco 970 Single Phase Battery Chargers

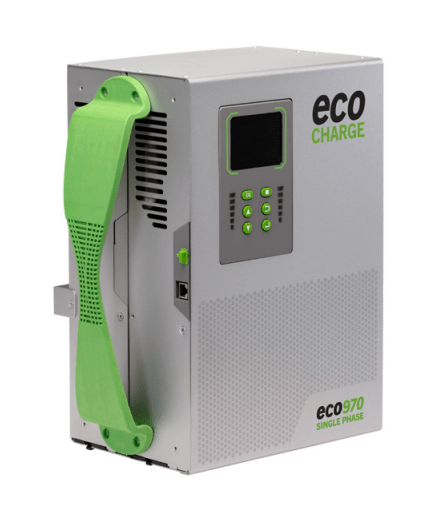

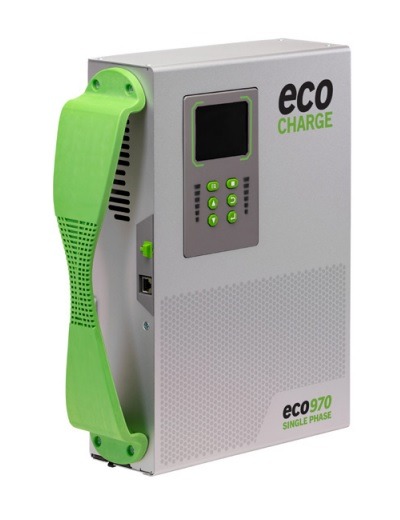

INTRODUCING THE ECO970 SERIES: SINGLE PHASE BATTERY CHARGER

The EcoCharge® ECO970 single phase chargers are an efficient, flexible, compact and feature rich series of battery chargers that suit a wide variety of industrial charging applications, including materials handling, ground support and automated vehicles.

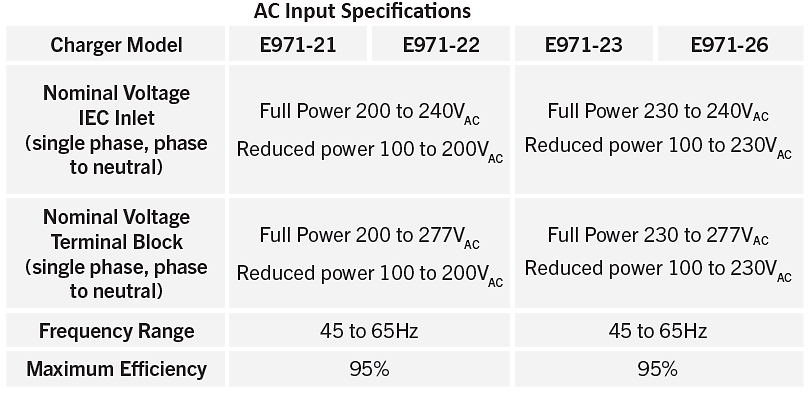

Models are available for 100 to 277VAC single phase AC supplies, suiting any common voltage found worldwide.

When combined with BMM battery modules or CAN bus equipped batteries the ECO970 charger can appropriately charge a mixture of batteries without operator input.

• Carries global set of compliance marks, including UL, cUL, FCC, IC, CE, UKCA, RCM and Giteki.
• Same extensive controller feature set as three phase ECO970 models.

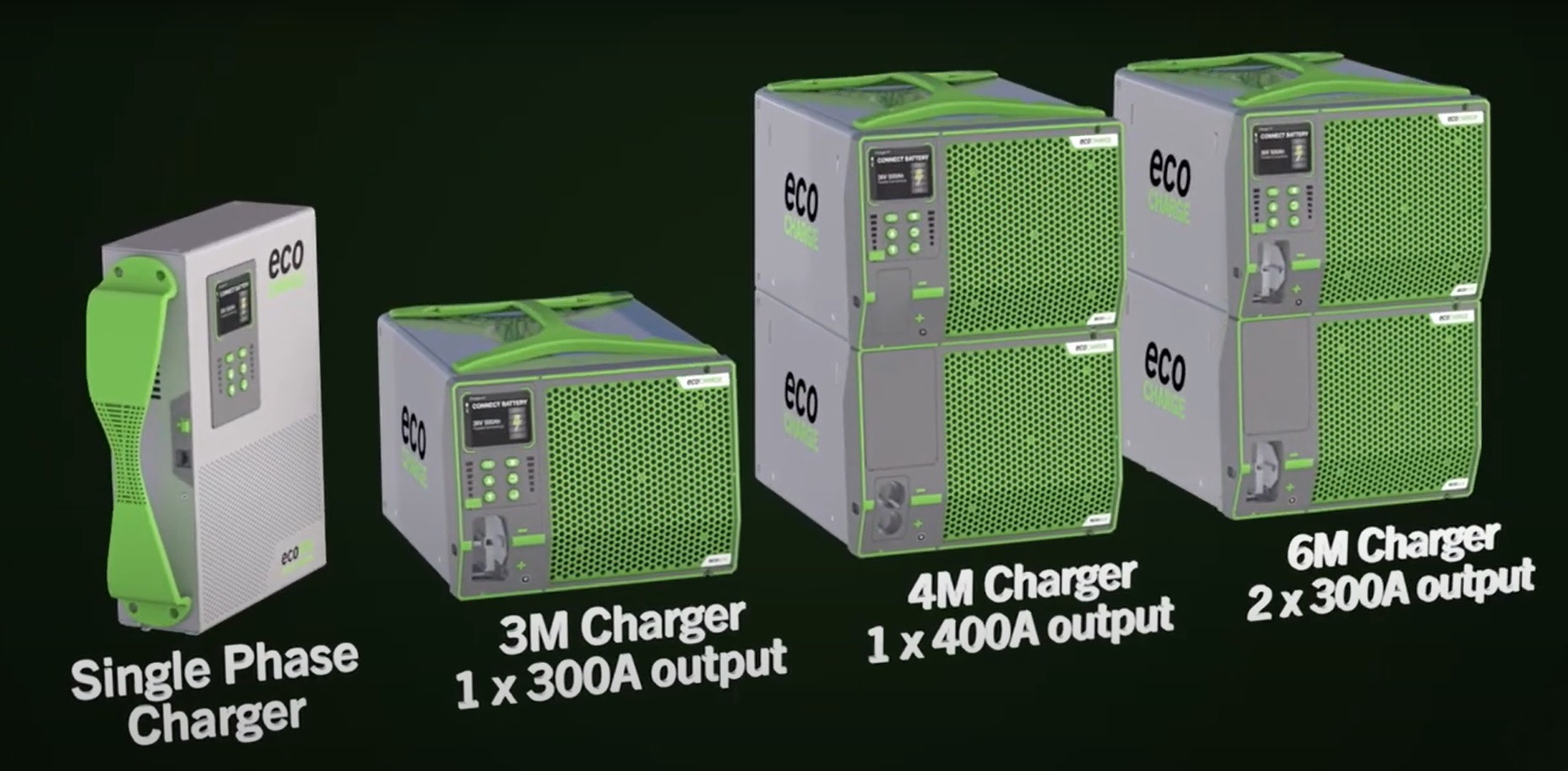

• Four models to cover a range of applications, each with a different maximum output power.
• Proven reliability

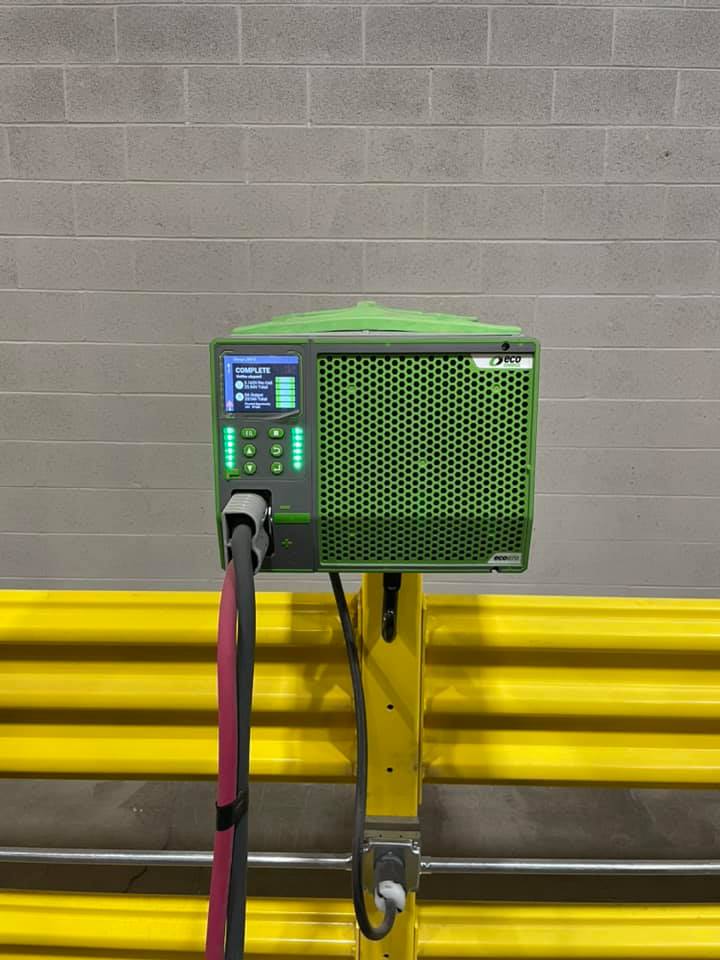

EcoCharge Single Phase G3-1M6

ECO970 single phase chargers bring the same flexibility, reliability and rich feature set to smaller applications where power supplies and space may be limited. Users of the ECO970 three phase will be instantly familiar with the single phase models.

EcoCharge Single Phase Charger Specifications

Peak Energy Efficiency 97.6%
• Superior efficiency allows the chargers to be exceptionally compact and power-dense.
• Ready to use with Automated Demand Response energy management systems.
• Automatic scheduled shut down and delayed start up to reduce peak demand cost.

Reliability
cUL listed to U.S. and Canadian national rules
• Meets and exceeds California Energy Commission efficiency standard.
• Power Module redundancy ensures continued operation
even in the case of fault.
• Designed and engineered by the same team as the XHF series charger, building upon its reputation for reliability

Flexibility
• Using 3 module types the E973 can meet your requirements for all North American three phase supplies; the E240 for 208 and 240VAC, E480 for 480VAC and E600 for 600VAC.
• Using 2 module types the E976 can meet your requirements for all North American three phase supplies; the E480 for 480VAC and E600 for 600VAC.
• All Three module types charge batteries from 24V through 96V battery configurations.
• The E976 charger model allows you to scale the output current from 100 to 600 amps maximum.
• All modules can charge flooded lead-acid, sealed, Gel, AGM, Lithium-ion and nickel-cadmium battery types.
• Each charger can be set up to charge multiple battery voltages and chemistries, using either the Auto-V Sensing,
or a profile programmed from a BMM-BT battery module.

Key Features:

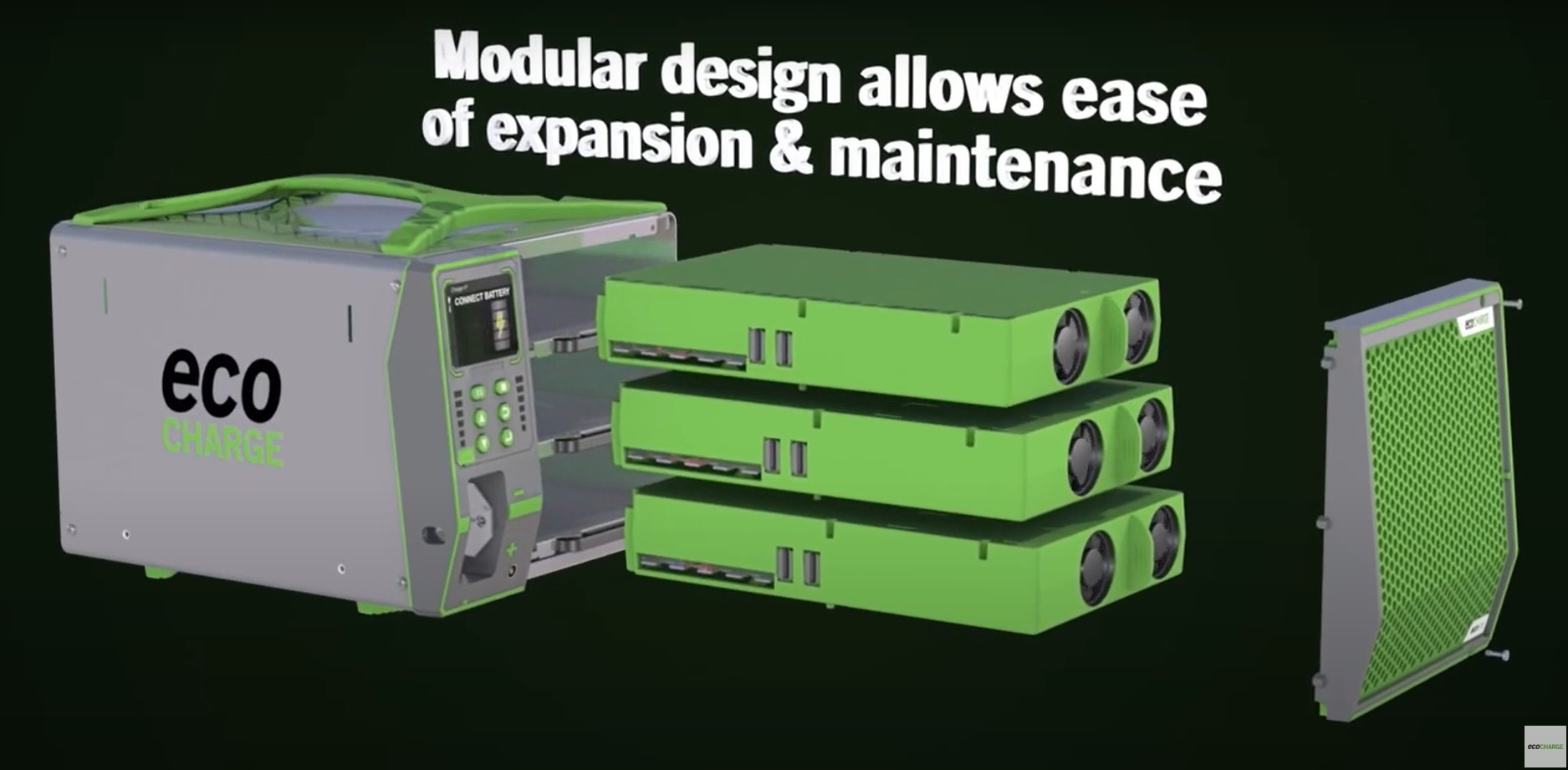

Flexible Charger Modules – All ECO970 charger modules can charge battery voltage from 24 to 96V, models are available for 200-240, 380 to 480 and 480 to 600V three phase mains supplies and 4.9 to 29.4kW output power.

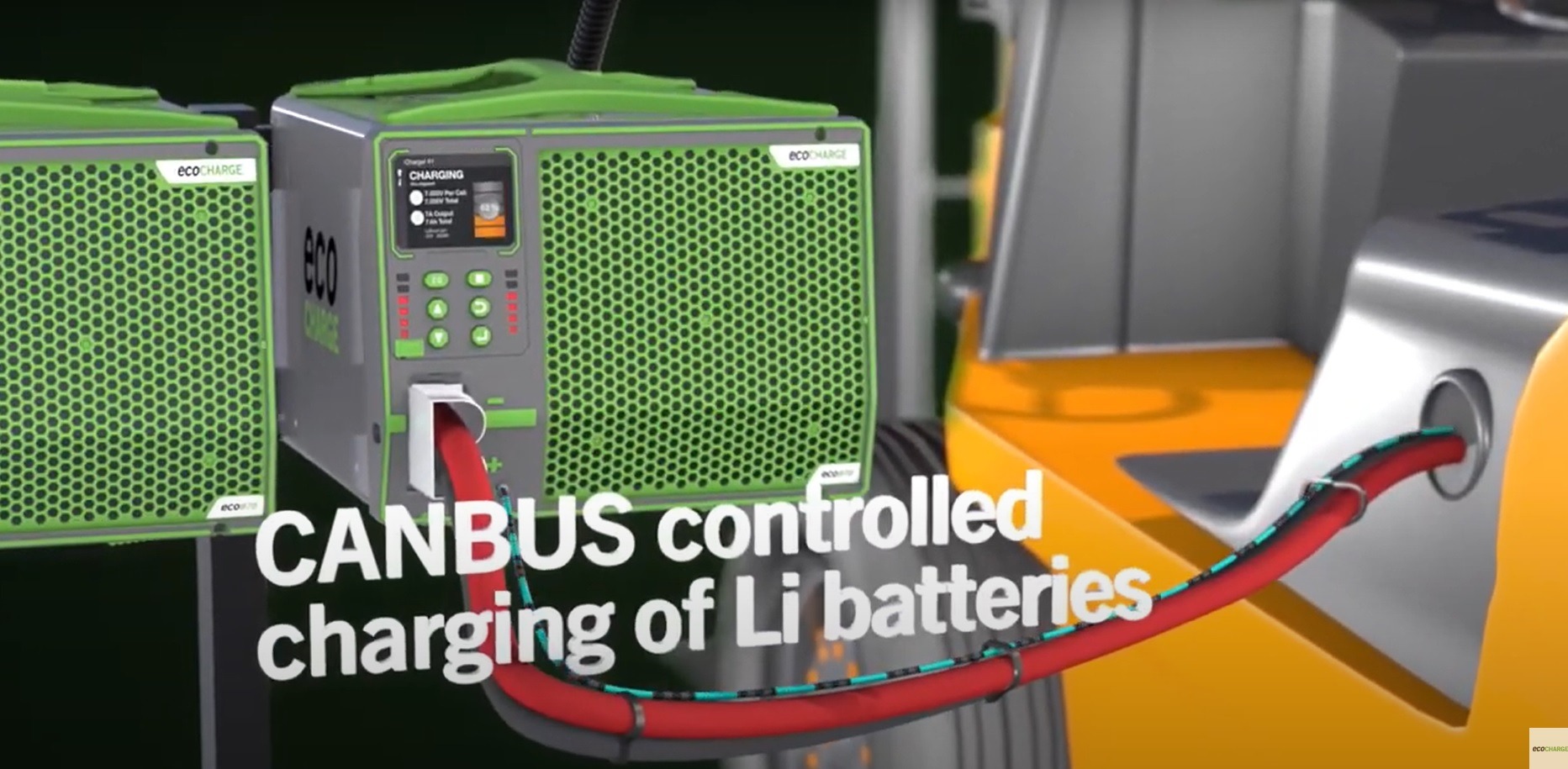

Connectivity – devices can be connected to the ECO970 using USB, Ethernet or Wi-Fi, and the ECO970 can perform BMS controlled charges over CAN bus.

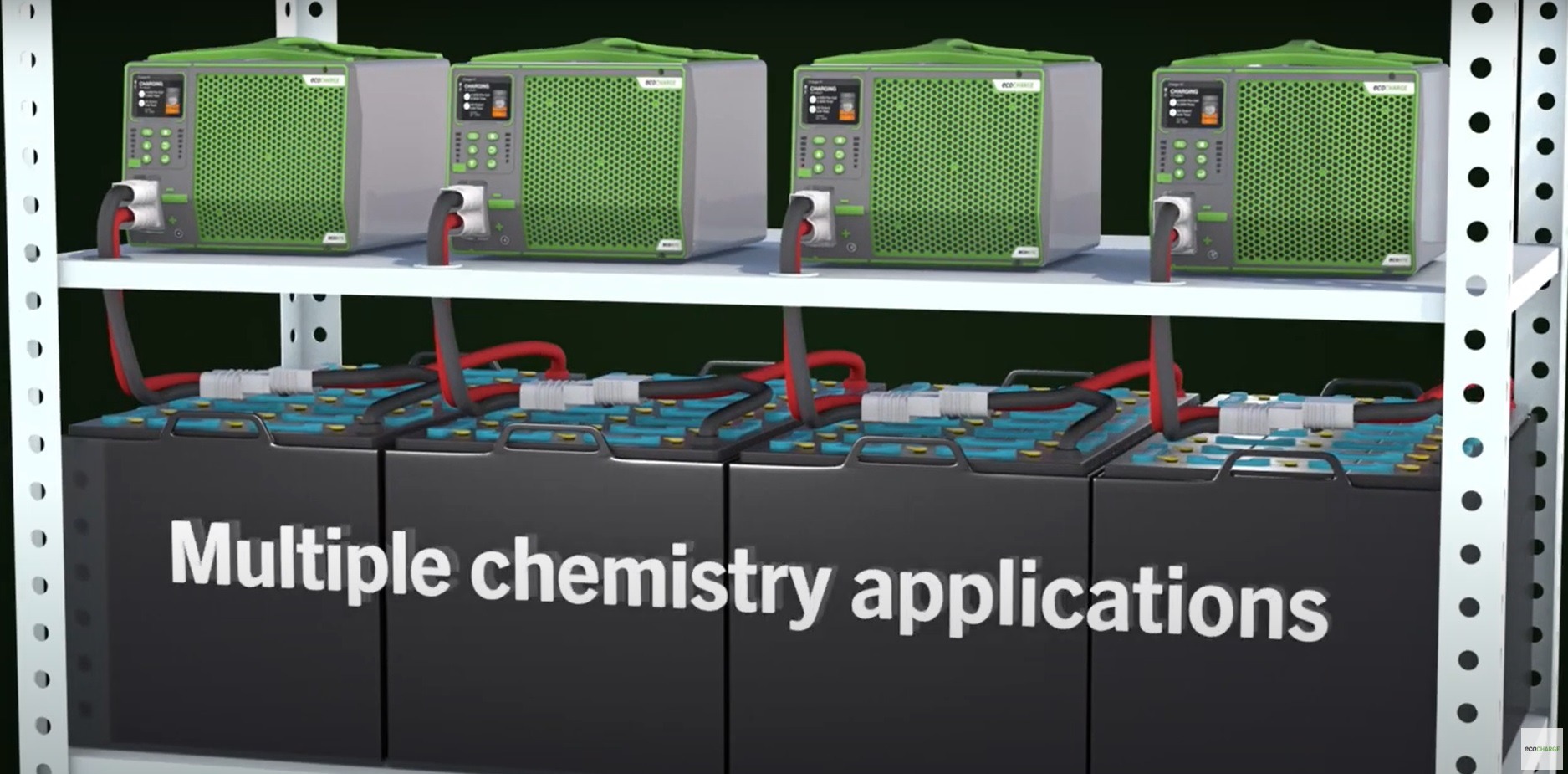

Flexible Configuration – a single ECO970 can be configured to support a mixed fleet installation with different chemistries, capacities and manufacturers without the need for reconfiguration or operator input.

Daily Schedule – the ECO970 can be programmed to pause charging during periods of peak electricity demand to reduce energy costs.

BMM-BT Compatibility – the ECO970 operates with existing EcoCharge battery modules.
